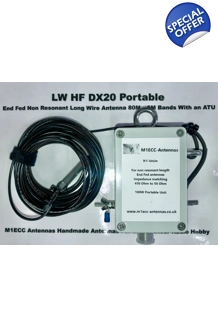

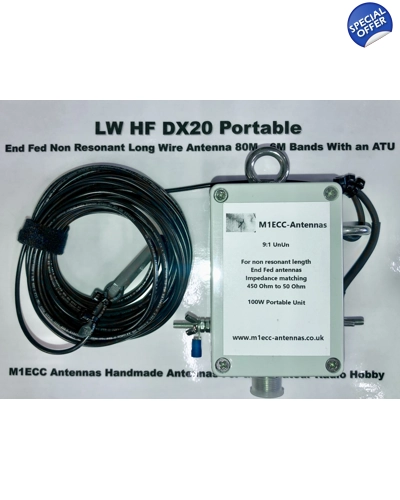

LW HF DX20 Portable Version

£47.00 inc. tax
  • RRP: £49.00
  • Now: £47.00
  • You Save: £2.00!!
  • Product Code: 6w8PlhX Units in Stock: 1

    Welcome to the LW HF DX20 Portable Version!



    LW HF DX20 End Fed Non Resonant Long Wire Antenna 80m - 6m With an ATU.
    The LW HF DX20 End fed long wire antenna.
    Also supports End fed Sloper, Inverted L or Vertical Configurations.

    They incorporate a 9:1 UNUN at the feed point enabling them to be fed directly with 50 Ohm
    coaxial cable. I have also fitted a earthing tag and eyelet to the box there is no requirement to fit anything to this but a good Earthrod, or Counterpoise wire or ground radial wires improves antenna performance greatly as the earth connection is really the other half of the antenna.

    The 9:1 UNUN also removes static noise and provides a DC path to earth. All are able to handle up to 100W.

    LW HF DX20 is 20m in length, This will work on all bands from 80m - 6m via an ATU. Big
    performance.

    These antennas give excellent results, However, please note that due to the varying impedance found on any long wire antenna, the built in ATU in your average transceiver will not be able to cope with all bands.

    For full band coverage you will need an external ATU or possible some form of capacitive loading system. This can be a simple L or T match, With the use of a wide tuning ratio external ATU.

    The nature of design of a long wire antenna can sometimes suffer from having stray RF or Voltages on the coax feeder cable causing RFI in the radio shack if you experience this it can be solved by fitting a Line isolator 1:1 common mode choke to your coax feeder cable.

    The LW HF DX20 portable comes fully assembled and ready to go.


    Specification:
    Type: End Fed Wire Antenna
    Frequency: 3.5 - 52 MHz
    Band: 80-6m
    Power handling 100W, RF
    Impedance 50 Ohms
    Connector SO-239
    Wire Length 20.00 Metres
    Non-Kink Poly Weave Wire
    Made in the UK by M1ECC Antennas.
    Weight 500g
