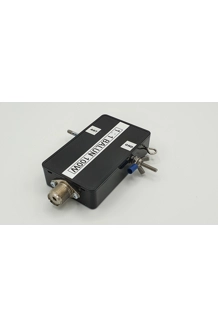

1:1 Current Balun 100W
£26.00 inc. tax
1:1 Current Balun 100W
1:1 Balun Current Balun was designed to allow easy interface of ladder line antennas to coax feeder, The Balun operates "stand alone", For resonant antennas thus does not require a Tuner. It may be used with any of your antenna projects.
Prevent Common Mode Current on your feedline You could also put it at the base of a resonant vertical - to act as a choke/isolator. An effective Balun should be resistive across the frequency range being used - and our choice of an FT140-43 is suited from 5MHz up to 30MHz.
Features/Specifications:
- 8 turns of RG316 on an FT140-43 core
- Resistive 5-30MHz
- Configuration: 1:1 Current Balun
- Frequency Coverage: 1.8 to 30 MHz
- Power Range: to 100 watts
- Core rated at 175w CW/Digi Modes (When at a 1:1 match!)
- SO239 connector
- Easy to weatherproof for permanent outside installation
- Enclosure size L100mm W60mm D25mm
- weight 150g
